Square Downpipe Branch – Black uPVC – Exterior Drainage

Product Overview

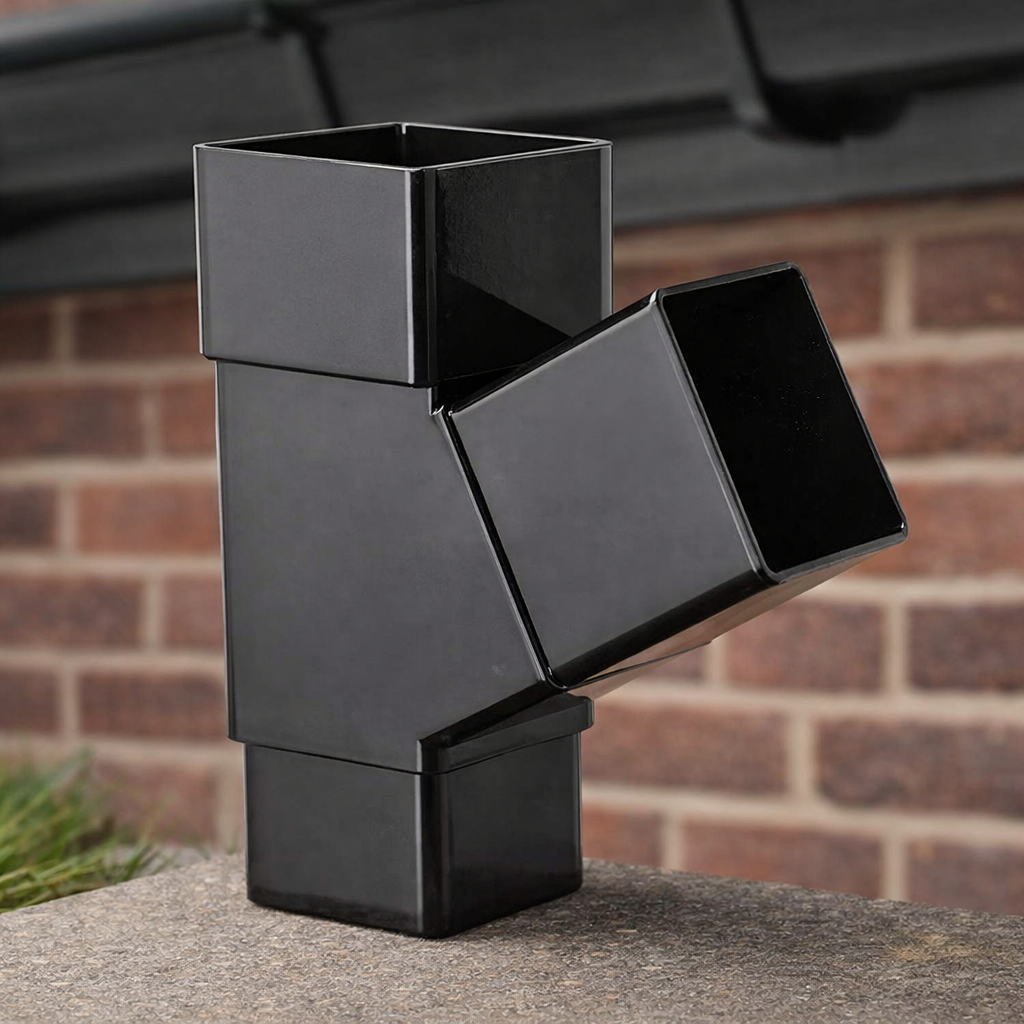

The 65mm Square Downpipe Branch in Black is crafted to merge two flows within a 65mm square downpipe system. Made from impact-resistant uPVC, this fitting is designed for longevity with UV stability, ensuring a long service life. The 112.5-degree angle provides an efficient connection for combining upper and lower pipe runs, while the black finish seamlessly blends with dark rooflines.

Features & Benefits

• Durable Construction: Crafted from impact-resistant uPVC for superior roofline performance.
• Secure Compatibility: Fully compatible with 65mm square fittings for hassle-free connection.
• Flow Merging: Efficiently combines two downpipe routes into a single discharge path.
• Maintained Flow: Smooth internal profiles for continuous water movement.
• Aesthetic Match: Black finish complements dark rooflines.
• Optimal Angle: 112.5-degree angle suited to standard branch configurations.

Applications

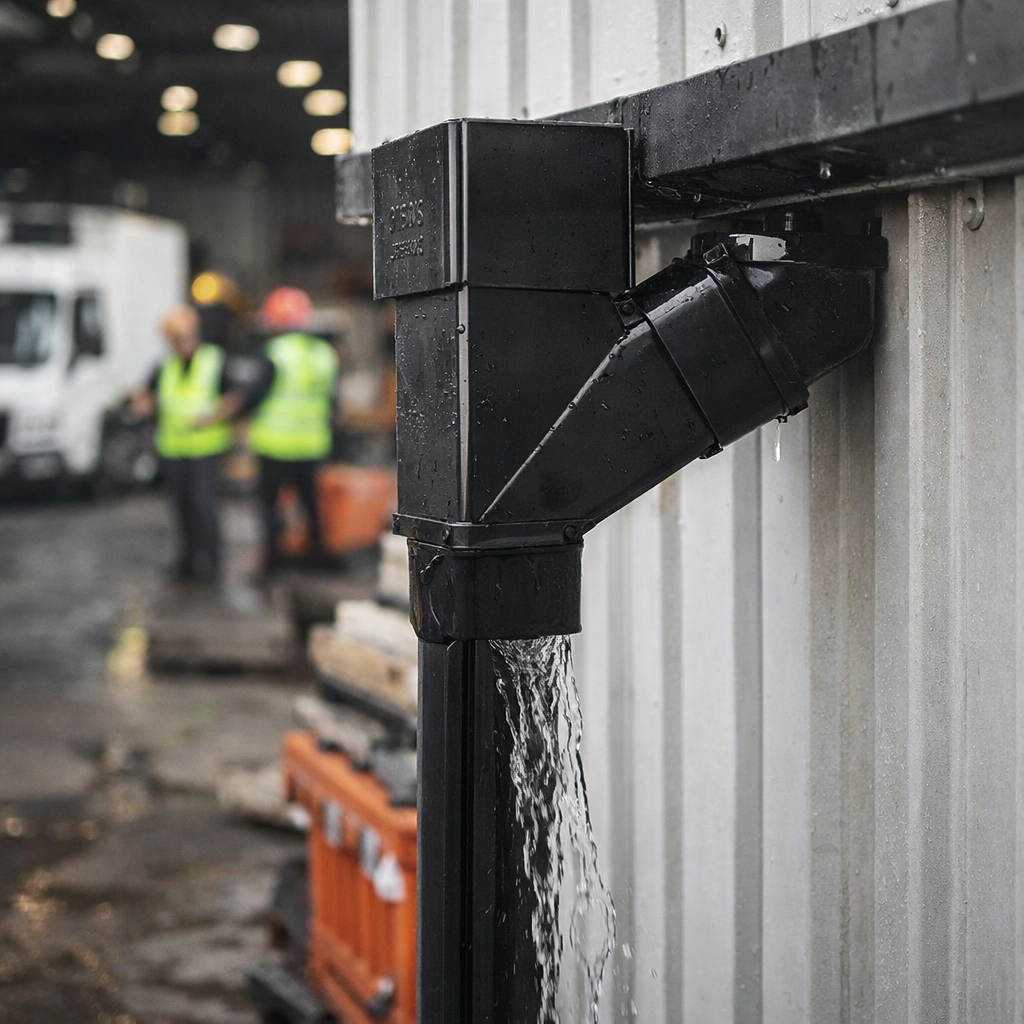

• Flow Combination: Ideal for merging two downpipe lines on multi-level roofs.
• Refurbishment: Replaces damaged branches in existing 65mm systems.
• Extensions: Perfect for integrating additional pipework into new or modified elevations.
• Repairs: Restores correct connections where previous junctions have failed.

Installation Guidance

• Joint Seating: Ensure all pipe ends are cut square and inserted fully into each socket.
• Bracket Placement: Install supporting brackets close to the branch for added stability.
• Orientation: Align the branch angle with incoming pipe routes.
• Seal Engagement: Use 65mm square connectors for additional joints.
• Inspection: Periodically verify for debris accumulation at the junction.

Compliance & Performance

• Material: Made from unplasticised polyvinyl chloride (uPVC).
• Temperature Performance: Suitable for service from -20°C to +60°C.
• UV Resistance: Tested to maintain color and performance over time.
• Load Capacity: Conforms to BS EN 12200 for rainwater downpipes.
• Important Note: Avoid using petroleum products; use clean water only for lubrication.

FAQ

• Q: Is this compatible with other downpipe systems?

  A: Yes, it is designed for compatibility with 65mm square systems.

• Q: Can this be used in extreme temperatures?

  A: It is suitable for temperatures ranging from -20°C to +60°C.

• Q: How do I ensure a secure connection?

  A: Ensure all pipe ends are cut square and fully inserted into sockets.
