Wall Ties – Steel – Cavity Wall Construction

Product Overview

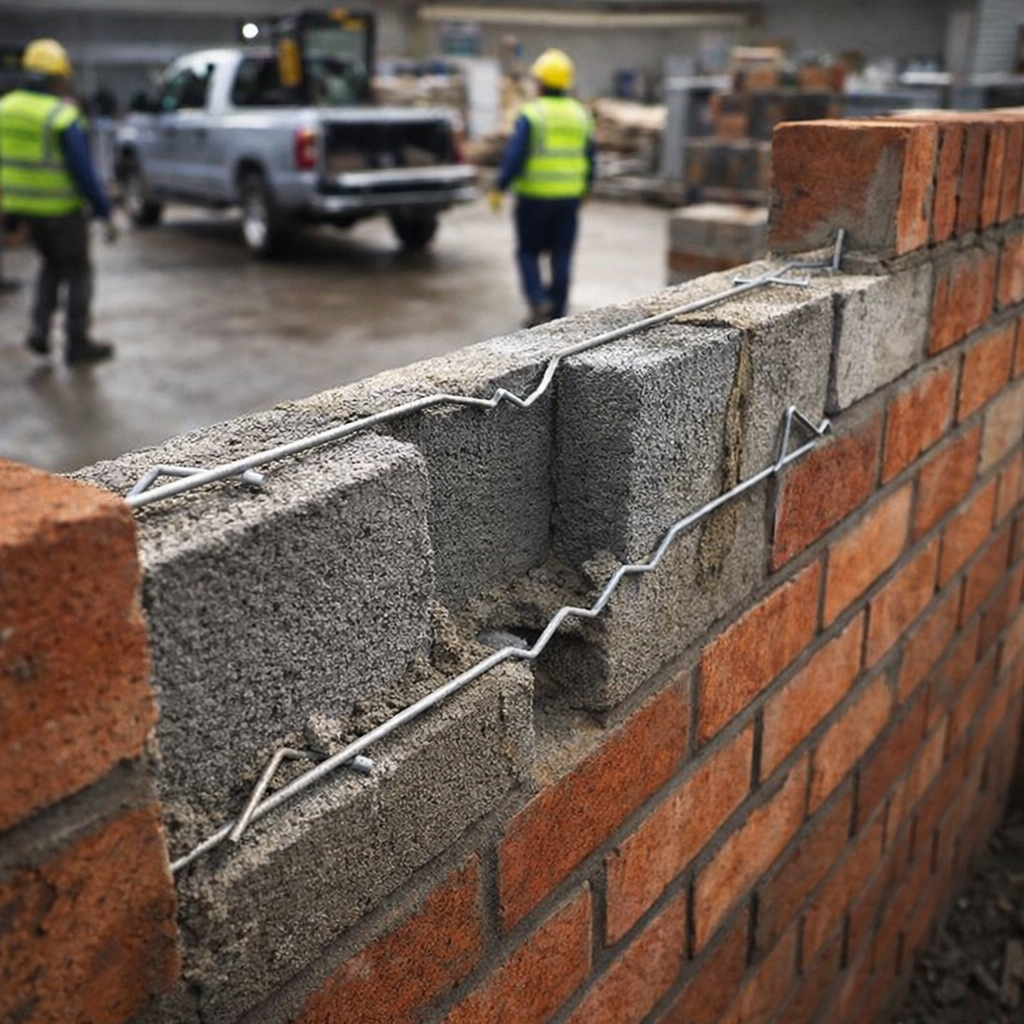

Our high-performance 200mm wall ties are designed for masonry cavity walls with a cavity width of 50–75mm. They provide secure restraint between masonry leaves while allowing for differential movement.

Classified as Type 4 ties to BS EN 845-1, they are suitable for dwellings up to 10m high in sheltered environments, typically where basic wind speed is below 27m/s. Their classification ensures they are perfectly specified for residential construction in low-exposure conditions.

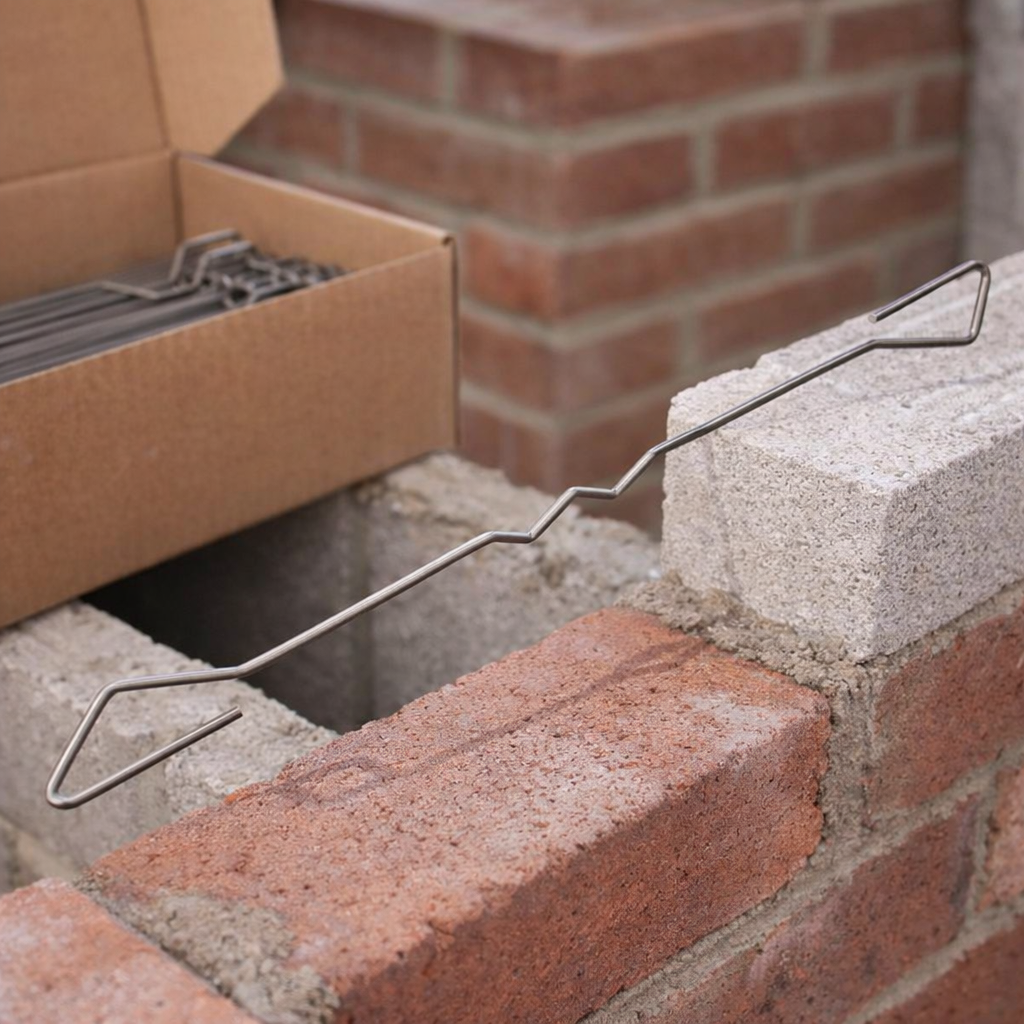

Each tie features an indented profile to enhance mortar bond and provide effective wall stability. At 200mm, they are specifically proportioned for cavities of 50–75mm, ensuring correct embedment into both leaves of the wall.

Constructed from stainless steel, they are resistant to corrosion and offer a long service life without the need for replacement.

Features & Benefits

• Stainless steel construction: Offers corrosion resistance and long-term structural reliability.
• Indented design: Enhances mortar bond and ensures stable restraint between masonry leaves.
• Type 4 classification: Suitable for dwellings up to 10m in height in sheltered environments.
• Cavity suitability: Specifically designed for 50–75mm cavity widths.
• Nominal size: 200mm length, ensuring correct embedment for the specified cavity range.
• Bulk box supply: 250 ties per box for efficient installation and cost-effective purchasing.

Applications

• Residential housing: Suitable for standard two-storey dwellings.
• Sheltered locations: Recommended where basic wind speed is below 27m/s.
• Internal separating walls: Provides restraint between leaves of blockwork.
• Extensions and small projects: Practical solution for smaller scale cavity walls.

Installation Guidance

• Correct embedment: Ensure each tie is embedded 62.5mm into both leaves of masonry.
• Positioning: Install at 900mm horizontal centres and 450mm vertical centres.
• Corners and openings: Increase density to 225mm vertical spacing within 300mm of openings.
• Mortar placement: Bed ties into fresh mortar, ensuring full coverage to prevent voids.

Compliance & Performance

• Material: Stainless steel to BS EN 10088 for durability and corrosion resistance.
• Standard compliance: Manufactured to BS EN 845-1 requirements.
• Classification: Type 4 wall tie for dwellings up to 10m in height in sheltered areas.
• Performance: Tested and proven for tensile and compressive load resistance.

FAQs

Q: Are these wall ties suitable for all environments?
A: They are ideal for sheltered environments where basic wind speed does not exceed 27m/s.

Q: What is the recommended embedment for these wall ties?
A: Each tie should be embedded 62.5mm into both masonry leaves for optimal performance.

Q: How many ties are included in a box?
A: Each box contains 250 ties.
