Frame Fixings – Carbon Steel – Residential & Commercial Use

Product Overview

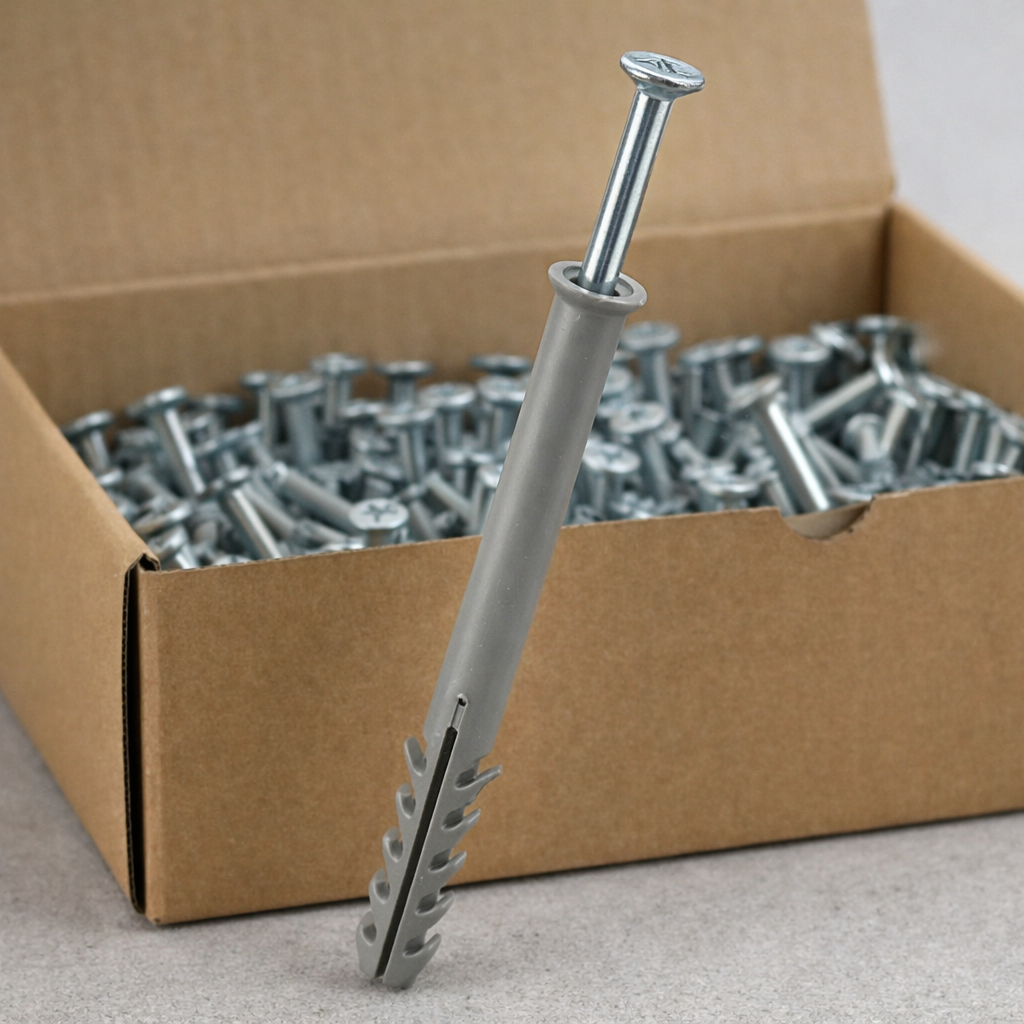

Experience superior anchorage with our heavy-duty nylon frame fixings, measuring 10mm in shank diameter and 120mm in length. These fixings are expertly designed for securing window and door frames, timber battens, and other deep construction elements into masonry or concrete. The extended length ensures firm anchorage, making them ideal for thick or layered materials that demand greater holding strength and stability.

Features & Benefits

• Material Composition: Constructed with high-quality nylon plug and a zinc-plated carbon steel screw, offering exceptional strength and corrosion resistance.
• Design: The expanding sleeve profile ensures consistent engagement, providing a secure hold in dense materials.
• Performance: Delivers superior grip without causing substrate cracking due to controlled expansion.
• Ease of Use: Pre-assembled for fast and accurate installation through frames and battens.
• Durability: Resistant to moisture, ageing, and temperature variations, ensuring long-term service.
• Load Suitability: Perfect for extra-deep, heavy-duty frame fixing applications.

Applications

• Window and Door Frames: Ideal for fixing deep-profile or structural frames into thick masonry.
• Timber Battens: Suitable for anchoring deep battens or subframes with added embedment.
• Structural Supports: Effective for fixing deep-set frameworks or reinforcement members.
• Service Installations: Excellent for mounting heavy conduits or rails through layered surfaces.

Installation Guidance

• Drill Hole Preparation: Drill a 10mm diameter hole to the full depth of the fixing.
• Clean Borehole: Ensure removal of dust and debris for full sleeve expansion.
• Insert Assembly: Push the pre-assembled fixing through the frame and into the drilled hole.
• Drive Screw: Tighten until the plug expands completely and the head seats flush.
• Avoid Over-Tightening: Excess torque may reduce expansion efficiency and compromise grip.

Compliance & Performance

• Material Specification: Nylon PA6 plug with zinc-plated carbon steel screw.
• Corrosion Resistance: Conforms to EN ISO 9227 for indoor and sheltered outdoor use.
• Thermal Stability: Maintains performance between -20°C and +80°C.
• Important Note: Ensure substrate integrity and correct drill diameter before installation.

FAQ

• Q: Are these fixings suitable for outdoor use?
  A: Yes, they are corrosion resistant and suitable for sheltered outdoor applications.
• Q: Can these fixings be used in high-temperature environments?
  A: They maintain performance between -20°C and +80°C.
• Q: What drill bit size is recommended?
  A: Use a 10mm drill bit for optimal results.
