Frame Fixings – Carbon Steel – Masonry Support

Product Overview

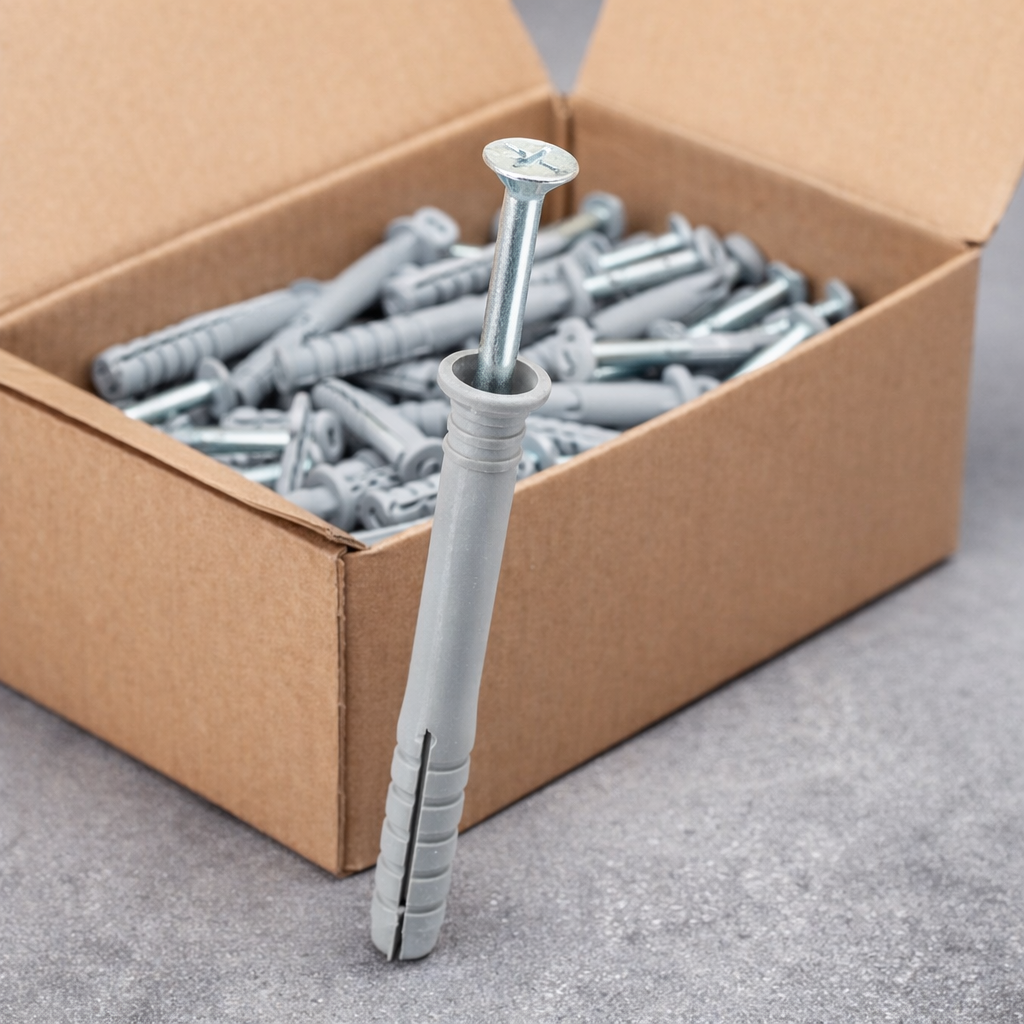

Our Nylon Hammer Fixings feature a 5mm shank diameter and 50mm length, designed for rapid and reliable installation into masonry, concrete, or blockwork. These fixings combine a high-strength nylon plug with a zinc-plated drive nail, allowing for fast installation without the need for screw tightening.

The 5 x 50mm variant is suitable for medium-duty applications, offering increased anchorage depth and holding strength for battens, trunking, and general-purpose profiles.

Features & Benefits

• Material Composition: Nylon plug paired with a zinc-plated carbon steel nail for enhanced strength and corrosion resistance.
• Design: One-piece hammer-in fixing for quick and straightforward installation.
• Performance: The expanding nylon sleeve provides a consistent grip in solid materials.
• Ease of Use: Install by hammering directly through the fixture without pre-assembly.
• Durability: Resistant to moisture, aging, and temperature variations for reliable service.
• Load Suitability: Designed for medium-duty fixing applications.

Applications

• Timber Battens: Ideal for fixing medium-weight battens to brick or block walls.
• Cable Trunking and Conduit: Perfect for securing electrical containment to solid surfaces.
• Profiles and Channels: Suitable for fixing aluminum or steel profiles where greater embedment is required.
• Interior Fittings: General-purpose fixing in masonry where additional strength is beneficial.

Installation Guidance

• Drill Hole Preparation: Drill a 5mm diameter hole to the required depth using a masonry or SDS drill bit.
• Clean Borehole: Remove dust and debris to allow full plug expansion.
• Insert Fixing: Position the fixture and insert the hammer fixing through it into the hole.
• Hammer In: Drive the nail until the head seats flush, expanding the plug in the process.
• Avoid Overdriving: Excessive force may deform the plug and reduce holding power.

Compliance & Performance

• Material Specification: Nylon PA6 plug with zinc-plated carbon steel drive nail.
• Corrosion Resistance: Suitable for indoor and sheltered outdoor environments.
• Thermal Stability: Maintains performance from -20°C to +80°C.
• Important Note: Always confirm substrate suitability and correct drill size prior to installation.

FAQs

• Q: What tools are required for installation?
  A: A hammer and a 5mm masonry or SDS drill bit are recommended.
• Q: Can these fixings be used outdoors?
  A: They are suitable for sheltered outdoor environments.
• Q: What is the suitable substrate for these fixings?
  A: They are designed for masonry, concrete, and blockwork surfaces.
