Self-Adhesive Insulation Pins – Metal – Residential & Commercial Insulation

Product Overview

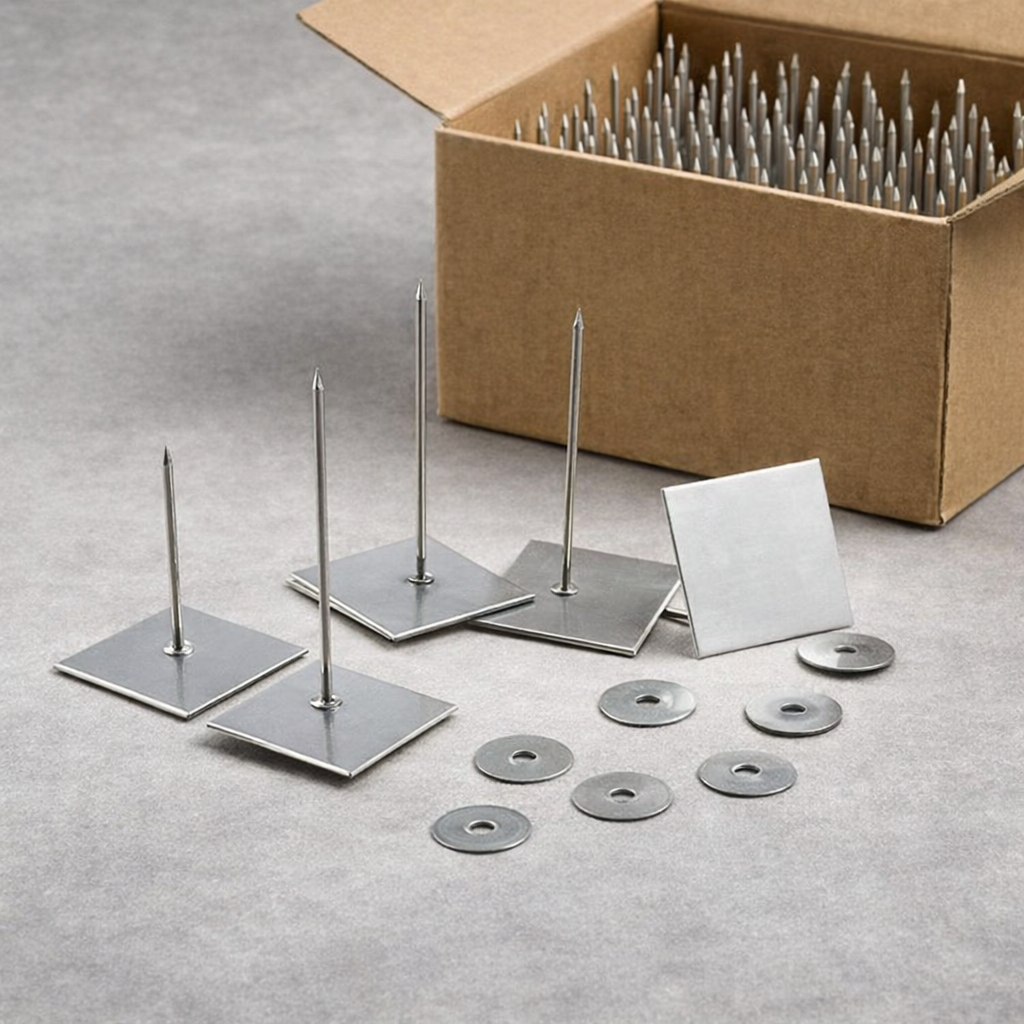

These 110mm self-adhesive stick pins come complete with a galvanised spring-steel locking washer, perfect for attaching insulation to smooth surfaces such as air ducts, attenuators, chambers, and enclosures without the need for drilling. The aluminium shank is firmly mounted to a 50mm x 50mm galvanised steel base, coated with a high-quality, white, cross-linked, closed-cell polyethylene foam adhesive. Installation is straightforward: impale the insulation and secure it with the locking washer. Full bond strength is achieved after 24 hours, making it ideal for thicker insulation materials and heavy quilt build-ups.

Features & Benefits

• Adhesive Base Construction: Features a 50x50 mm galvanised steel plate, 0.4 mm thick, bonded with 1mm white cross-linked closed-cell polyethylene foam adhesive, ensuring a reliable hold.
• Pin Specification: The 2.7mm (12 ga) aluminium shank is securely mounted to the base for effective impalement and retention of insulation layers.
• Washer Compatibility: Supplied with CL 24-32 bevelled-edge locking washers made from 0.4mm thick galvanised spring steel, providing secure and reliable mechanical clamping.
• Extended Length: 110mm length provides substantial projection, suitable for thick insulation and heavy quilt build-ups where increased stand-off is required.

Applications

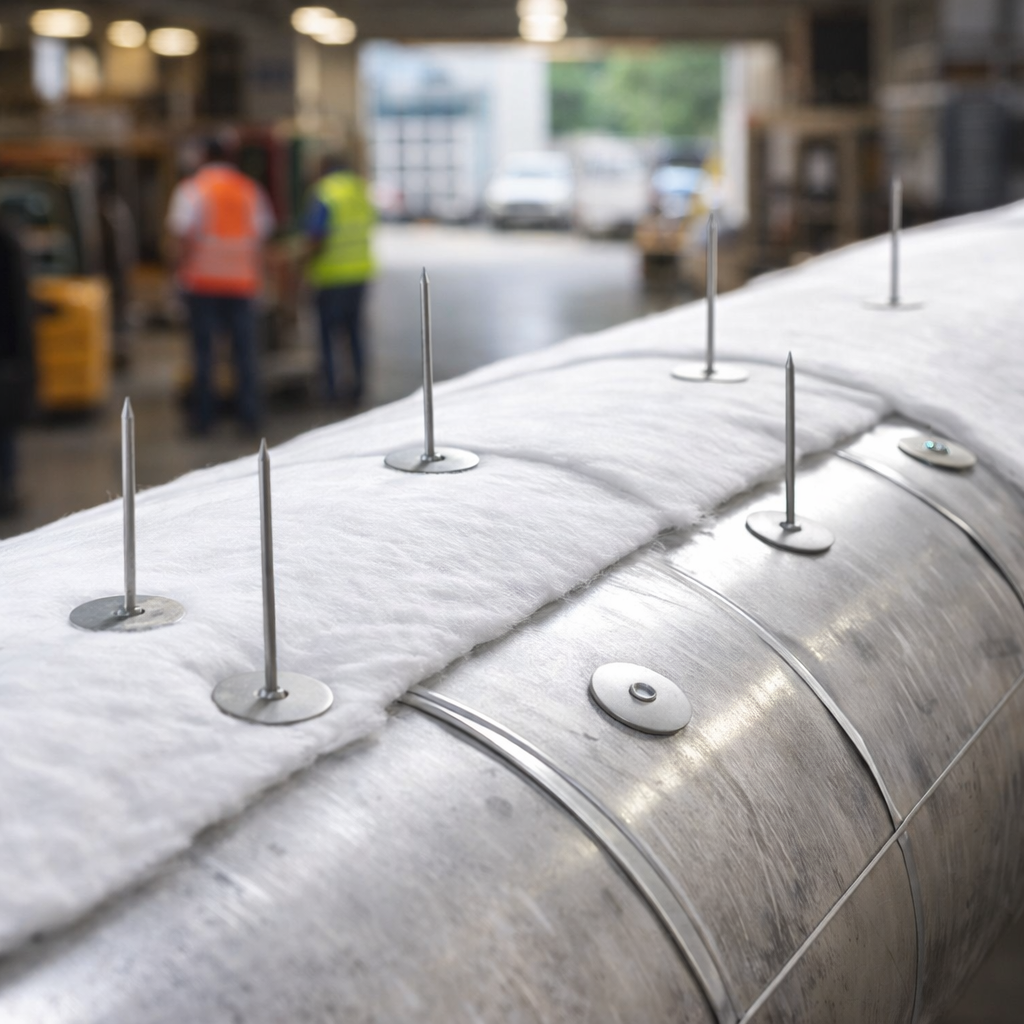

• Thick Duct Liners: Ideal for fastening heavy or multi-layer duct liners to smooth sheet-metal duct walls and plenums.
• Equipment Enclosures: Perfect for fixing insulation inside AHU panels and large casings with deeper clearance.
• Acoustic Wraps: Effective for retaining heavy acoustic quilts on main trunks and large take-offs.
• Foil-Faced Laminates: Excellent for clamping multi-layer foil-faced thermal membranes where longer projection is essential.

Installation Guidance

• Surface Condition: Ensure the substrate is clean, dry, and free of dust, grease, oil, or loose matter. Avoid using degreasing agents.
• Application Temperature: For optimal adhesive wet-out, install within +15°C to +25°C.
• Placement: Remove the siliconised liner without touching the adhesive. Position and press the full base area firmly.
• Fixing the Insulation: Impale insulation immediately and drive the locking washer down to clamp. Full bond develops after 24 hours.
• Finishing: Trim or cap the exposed pin as needed to prevent sharp protrusions and protect adjacent materials.

FAQ

• Q: Can these pins be used on uneven surfaces?
  A: They are designed for smooth substrates; uneven surfaces may compromise adhesion.
• Q: How long until the adhesive reaches full strength?
  A: Full bond strength is achieved after 24 hours.
• Q: Are the washers included?
  A: Yes, bevelled-edge locking washers are included with the pins.
