Product Overview

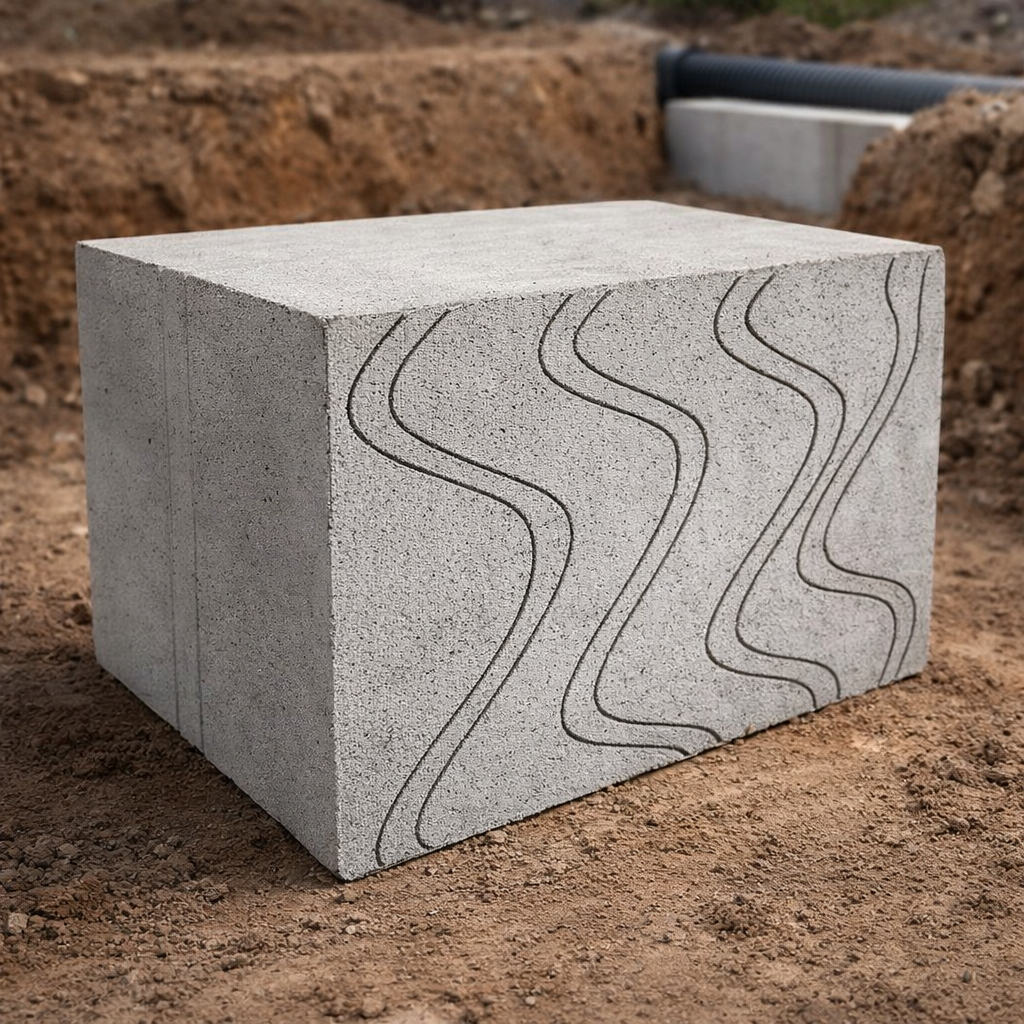

This 300mm high-performance aircrete trench block offers a compressive strength of 3.6N/mm², making it ideal for below-damp proof course (DPC) foundation walls. It supports single-leaf construction and enhances both thermal and moisture performance. With a typical thickness of 300mm, it effectively replaces cavity wall construction, streamlining the building process.
Product Specifications
| Specification |
Details |
| Application |
Below DPC Internal & External Leaf Cavity Walls |
| Indoor/Outdoor Usage |
Outdoor |
| Material Type |
Aerated Concrete |
| Thickness |
300mm |
| Length |
440mm |
| Height |
215mm |
| Weight |
22.7kg |
| Sales Unit |
Each |
| Fire Rating |
A1 Non-Combustible |
| Moisture Resistant |
Yes |
| Thermal Conductivity |
0.24W/mK |
| Compressive Strength |
3.6N |
| Density |
600kg/m3 |
| Product Standard |
BS EN 771-1 |
| Edge |
Tongue & Groove |
Features & Benefits
-
Compressive Strength (3.6N/mm²): Suitable for foundation and load-bearing applications.
-
Thermal Conductivity (λ = 0.15W/m·K): Reduces heat loss through groundworks.
-
High Moisture Resistance: Ensures durability in damp-prone areas.
-
80% Recycled Content: Supports sustainable building practices.
-
Lightweight: Easier handling and faster build times compared to concrete blocks.
-
Standard Face Dimensions (440mm x 215mm): Consistent sizing for efficient coursing.
-
Wide Format (300mm Thickness): Reduces the need for cavity foundations.
Applications
-

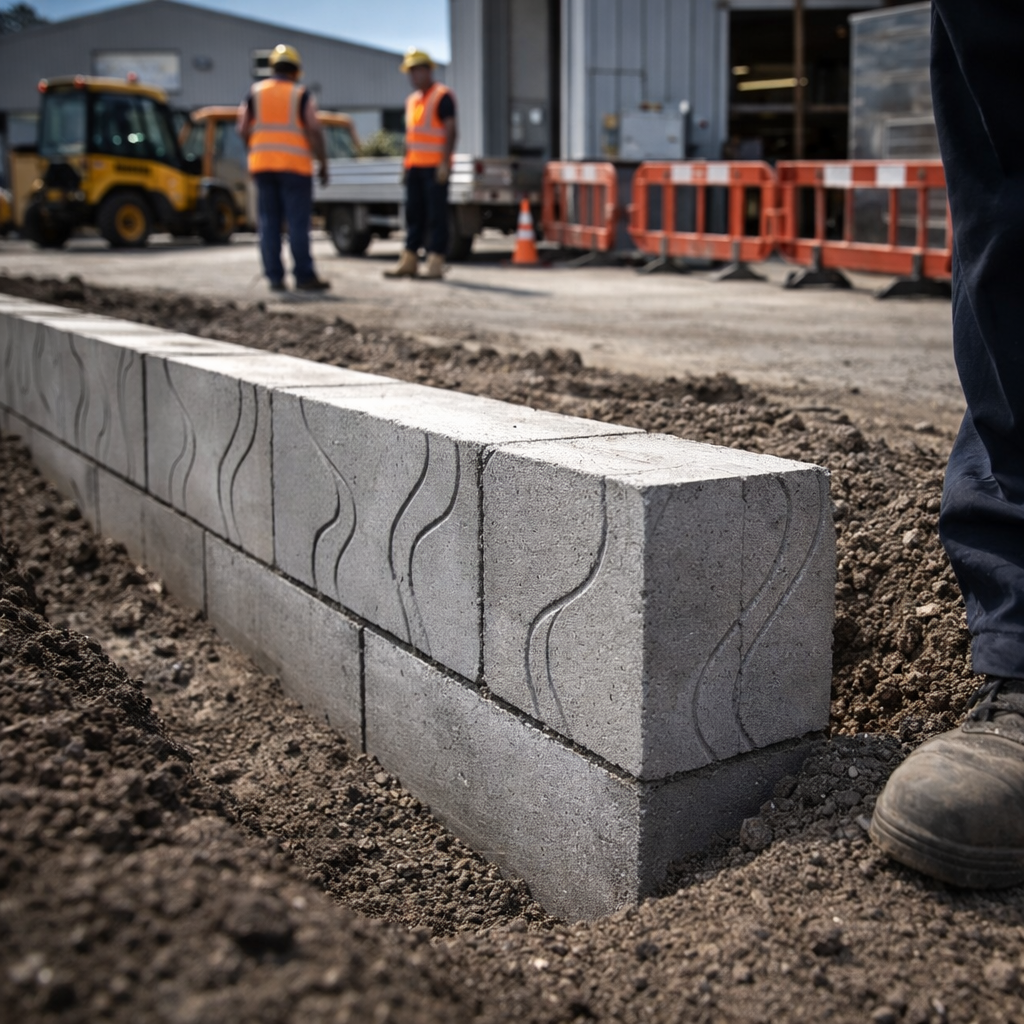

Foundation Walls: Suitable for single-leaf construction below DPC.
-
External Walls Above Foundations: Provides thermal continuity from base to walling.
-
Load-Bearing Foundations: Simplifies construction by replacing cavity wall foundations.
-
Separating Foundation Walls: Provides stability for partitions below ground.
Installation Guidance
-
Use Thin-Joint or Traditional Mortar: Facilitates strong bonding and structural stability.
-
Lay Below DPC Level: Ensures correct application in foundations.
-
Maintain Level and Alignment: Prevents settlement and structural defects.
Compliance & Performance
-
Compressive Strength (3.6N/mm²): Complies with requirements for foundation walling.
-
Service Class: Suitable for below-ground use in damp-prone applications.
FAQs
-
What is the compressive strength of the block? The block has a compressive strength of 3.6N/mm², suitable for load-bearing applications.
-
Can these blocks be used in damp conditions? Yes, they have high moisture resistance, suitable for damp-prone areas.
-
Are these blocks environmentally friendly? Yes, they contain 80% recycled content, promoting sustainable building practices.
