Plasterboard Fixings – Carbon Steel – Residential & Commercial Use

Product Overview

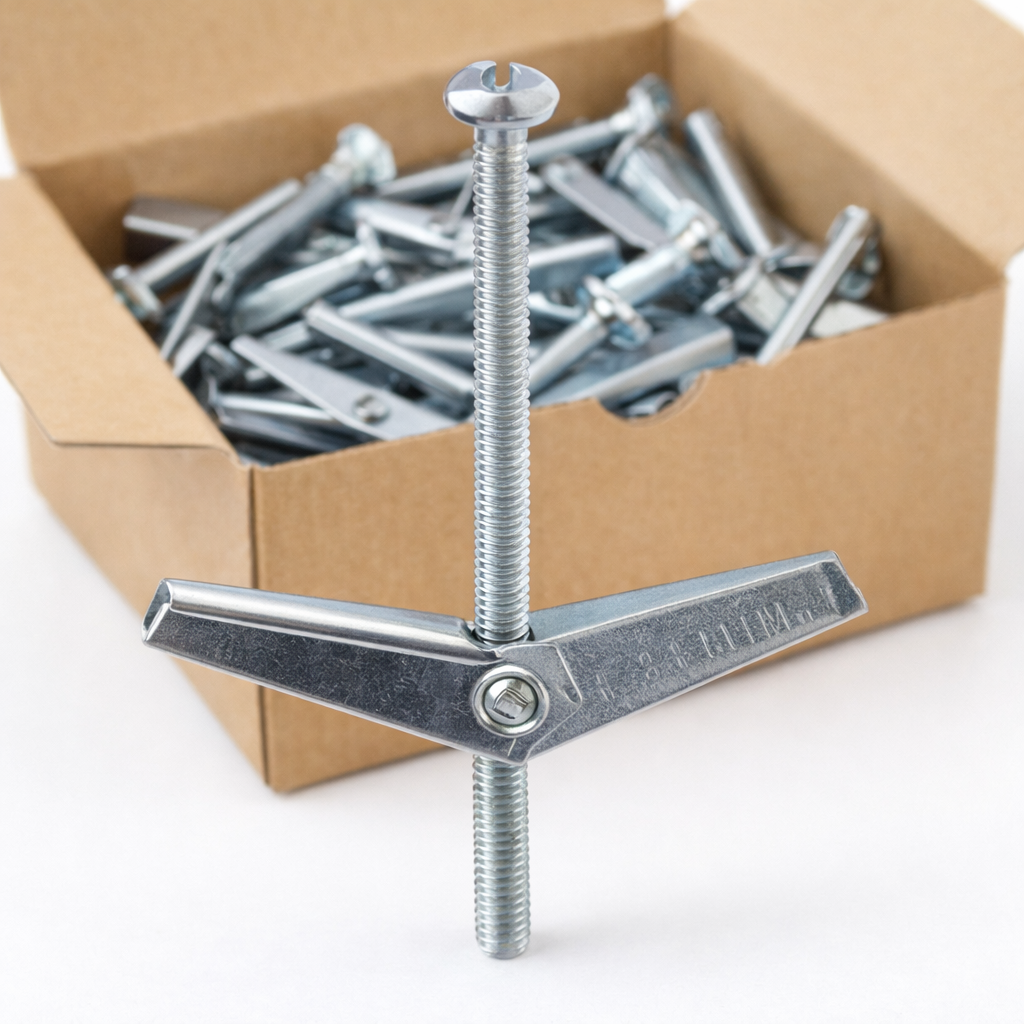

Our high-performance spring toggle plasterboard fixings feature a 3mm thread diameter and 50mm length, perfect for light-duty hanging in hollow walls. Each fixing includes a spring-loaded metal toggle and a machine screw, expanding behind the plasterboard for a strong, secure hold. This design provides a broad bearing surface to spread load and prevent pull-through in thin or weak wall panels. Ideal for lightweight shelves, small mirrors, or decorative fittings, the 50mm length allows installation in standard wall cavities without over-penetration.

Features & Benefits

• Secure load distribution: Expanding toggle wings spread load over a wide area to prevent plasterboard damage.
• Reliable engagement: Spring-loaded mechanism ensures immediate toggle deployment behind the board.
• Corrosion-resistant finish: Zinc-plated steel components resist rust in interior environments.
• Reusable screw element: Machine screw can be removed and refitted without compromising fixing integrity.
• Compact cavity reach: 3mm thread diameter with 50mm length suited to shallow cavities and standard 12.5 mm plasterboard.

Applications

• Light shelving: For small display or utility shelves in hollow walls.
• Mirrors and frames: Provides secure hold for lightweight mirrors or framed items.
• Electrical fittings: Suitable for mounting low-weight fittings such as cable clips or conduits.
• Decorative brackets: Fixes small ornamental or support brackets where cavity anchorage is required.

Installation Guidance

• Drill pilot hole: Use the correct drill size to allow toggle wings to fold and pass through the wall.
• Insert folded toggle: Compress wings and push through the hole until the spring action opens the toggle behind the board.
• Draw toggle tight: Pull gently on the screw head to seat the toggle firmly against the inner board surface.
• Tighten screw: Fit the item to be fixed and tighten until secure - avoid overtightening.

Compliance & Performance

• Material specification: Zinc-plated steel toggle and screw assembly for strength and corrosion resistance.
• Compliance: Manufactured to relevant BS and EN fastener standards for general construction fixings.
• Important note: Ensure cavity is free of obstructions and do not use for structural or load-bearing applications.

Frequently Asked Questions

• Q: Can the fixings be used outdoors?
  A: These fixings are designed for interior use due to their zinc-plated finish.
• Q: Are the screws reusable?
  A: Yes, the machine screw can be removed and refitted without compromising fixing integrity.
• Q: What is the maximum load these fixings can support?
  A: These fixings are intended for light-duty applications and should not be used for structural support.
